B&C DISSOLVED OZONE MONITOR
B&C Dissolved Ozone Monitor provides an economical and reliable measurement system for water quality monitoring and controlling ozone treatment systems.
The instrument provides:
– measuring display in the range stated by the installed sensor;
– automatic measurement control function
– alarm from the low/high measurement, the setpoint overtime operation, and the logic input;
– programmable dual analog output for recording and acquisition of the measurement values or PID regulation;
– hold/alarm function activated by two external volt free contacts;
– automatic /manual auto clean function.
| Inputs: | Potentiostatic sensors polarographic membraned sensors Pt100 / Pt1000 |
| Zero: | ± 20 %, ± 5.0 °C, ± 9 °F |
| Sensitivity: | 12.5 ÷ 250 % |
| Resolution: | 1 digit |
| Accuracy: | 0.2 % |
| Repeatability: | 0.1 % |
| Non-linearity: | 0.1 % |
| Dual filter software: | 0.4 ÷ 50.0 seconds for small and large variations |
| Dual analog output: | 0-20 mA / 4-20 mA Rmax 600 Ω |
| Dual set point HI/LO: | 0 ÷ 10 % |
| Delay: | 0 ÷ 100.0 seconds |
| Alarm: | SPDT relay with delay 0 ÷ 100.0 seconds |
| Cleaning function: | off / autoclean / manual, relay SPDT repetition time 0.1 ÷ 100.0 hours cleaning time 1.0 ÷ 60.0 seconds holding time 0.0 ÷20.0 minutes |
| SPST and SPDT relay contacts: | 220V – 5 A resistive load |
| Operating temperature: | -10 ÷ 60 °C |
| Humidity: | 95% without condensation |
| Power supply: | 85 ÷ 264Vac – 50/60 Hz 9 ÷ 36Vdc, 12 ÷ 24Vac (option 091.42x) |
| Terminal blocks: | removable |

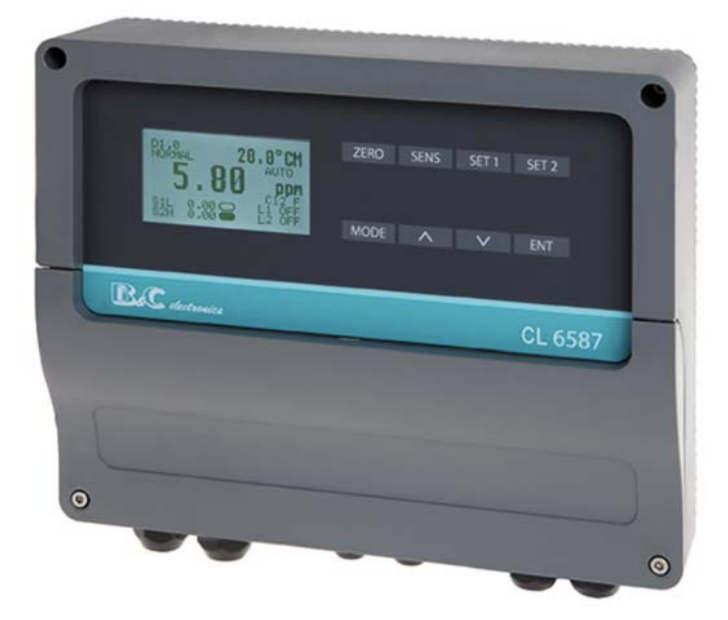

| Weight: | 1360 g (CL 6587) 450 g (CL 7687) |
| Enclosure: | ABS, IP 65 protection (CL 6587) Metallic, IP 65 front panel only (CL 7687) |
| Dimensions: | 256x230x89 mm (CL 6587) 98x98x104 mm, 90x90x95 mm panel cutout (CL 7687) |
| EMC/RFI conformity: | EN 61326 |
| Registered design: | 002564666-002 (CL 6587) 002564666-003 (CL 7687) |
