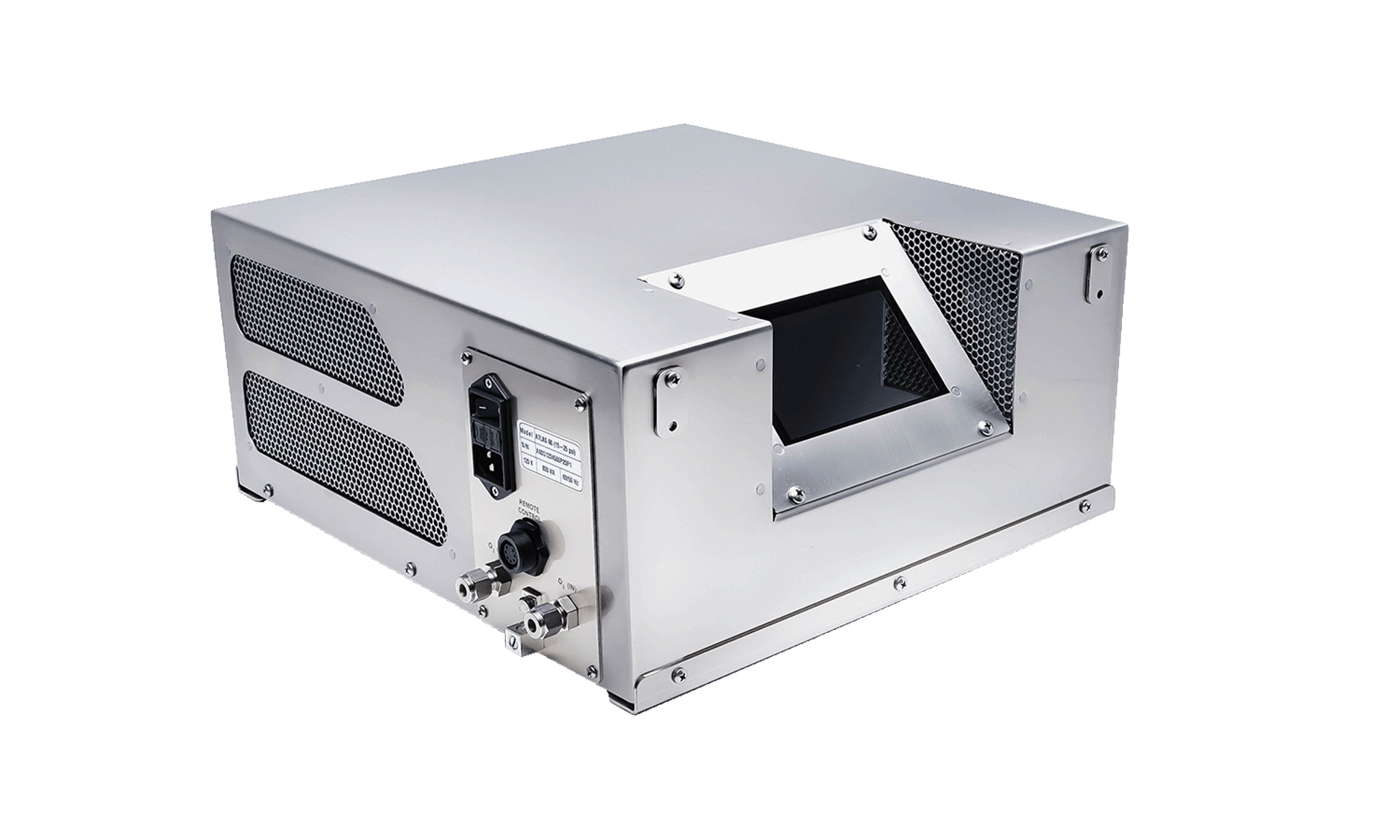

ATLAS 30
AIR COOLED OZONE GENERATOR
Experience the groundbreaking innovation of Absolute Ozone® Generators, setting a new standard in ozone technology.”With unmatched industry performance, they can reliably produce high-concentration ozone up to 12% by weight.
Now taking orders, Get yours today!
Technical Specifications
Product Characteristics
Ozone Production: up to 30 g/h
Standard Working Pressure: 20 PSIG*
Concentration (% by weight O3): up to 12%
Gas flow rate: 0.1 – 3 SLPM
Control Power Requirements
120 V ~ ±10%, 50/60 Hz, Single Phase, 5.5 A
230 V ~ ±10%, 50/60 Hz, Single Phase, 2.7 A
Maximum Power Consumption: 350 W
Physical Connections
Oxygen Inlet: 0.25-inch Swagelok
Ozone Gas Piping Outlet: 0.25-inch SS Swagelok
Materials and Construction
Enclosure: Brushed Stainless Steel/Aluminum
The high Precision Machined Ozone Generator Cell is tested at up to 150 PSIG for leaks.
O3/O2 Gas Tubing: PTFE/304 Stainless Steel/Brass

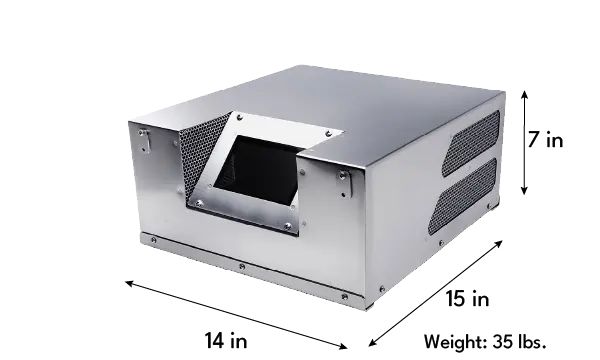

Dimensions and Weight
Enclosure Dimensions: 7″ height x 14″ width x 15″ depth
Generator Weight: 35 lbs
CSA – available as an option
Reliability, Performance, and Quality Backed By 5 Years Warranty!
Performance
Experience unbeatable & Guaranteed Performance
Absolute Ozone®’s unbeatable ATLAS ozone generator dissolves more ozone than any other, delivering superior disinfection rates. Absolute Ozone® generators are the ultimate breakthrough in ozone technology. Their microfluidic platform design ensures precise and reliable delivery of ozone for a diverse range of applications.”
| OXYGEN FLOW (slpm) | OZONE CONC. (%w/w) | OZONE PROD. (g/h) |
|---|---|---|
| 0.4 | 15.4 | 11.9 |
| 1 | 13.3 | 10.6 |
| 2 | 11.0 | 17.5 |
| 3 | 10.6 | 25.4 |
| 4 | 9.2 | 29.4 |
| 5 | 7.8 | 31.2 |
*Typical ATLAS 30 performance. The test was performed at 20˚C, Generator was ON for 30 min.
Key Features
iOzone™
Designed to protect against installation or usage issues like incorrect gas pressure, high ambient temperatures, flooded ozone cells, wiring/voltage problems and more.
LCD Screen
The LCD screen will allow touch to switch the generator on and off and to adjust the desired power.
Remote Control
The generator comes with 4-20mA/0-10VDC Remote
Control Inputs allow for precise device control via
external signals.
Most compact in the Industry:
ATLAS—Absolute Ozone® Generators produce up to 30 g/h of ozone and have dimensions of 7” x 14” x 15” Only! – save valuable space and money on shipping.
5-years Warranty:
Peace of mind with our 5-year warranty, plus a performance guarantee. Absolute Ozone® generators save you money on repairs and downtime.
Technical Support:
Our technical assistance to our customers is complimentary, unlimited and absolutely free of charge.
Advanced Microfluidic Design for Unmatched Performance
At the heart of Absolute Ozone® generators is our cutting-edge ozone cell, designed with microfluidic technology for the highest concentration output. This innovation sets a new standard for efficiency, reliability, and longevity, operating flawlessly for decades without maintenance or parts replacement, solidifying Absolute Ozone® as the pinnacle of ozone generation technology.
Intelligent Protection with iOzone Diagnostic System
Absolute Ozone® takes reliability to the next level with iOzone, our integrated diagnostic system. iOzone continuously monitors key operational parameters, providing real-time insights to proactively prevent damage to the generator. By identifying potential issues before they escalate, iOzone safeguards your investment, ensuring uninterrupted performance and extending the life of your ozone generation system.
LCD touchscreen interface
Our advanced LCD touchscreen interface transforms the way you interact with Absolute Ozone® generators. This intuitive control panel not only offers effortless system management but also provides critical real-time data at your fingertips. With instant access to vital information, you can ensure optimal performance.

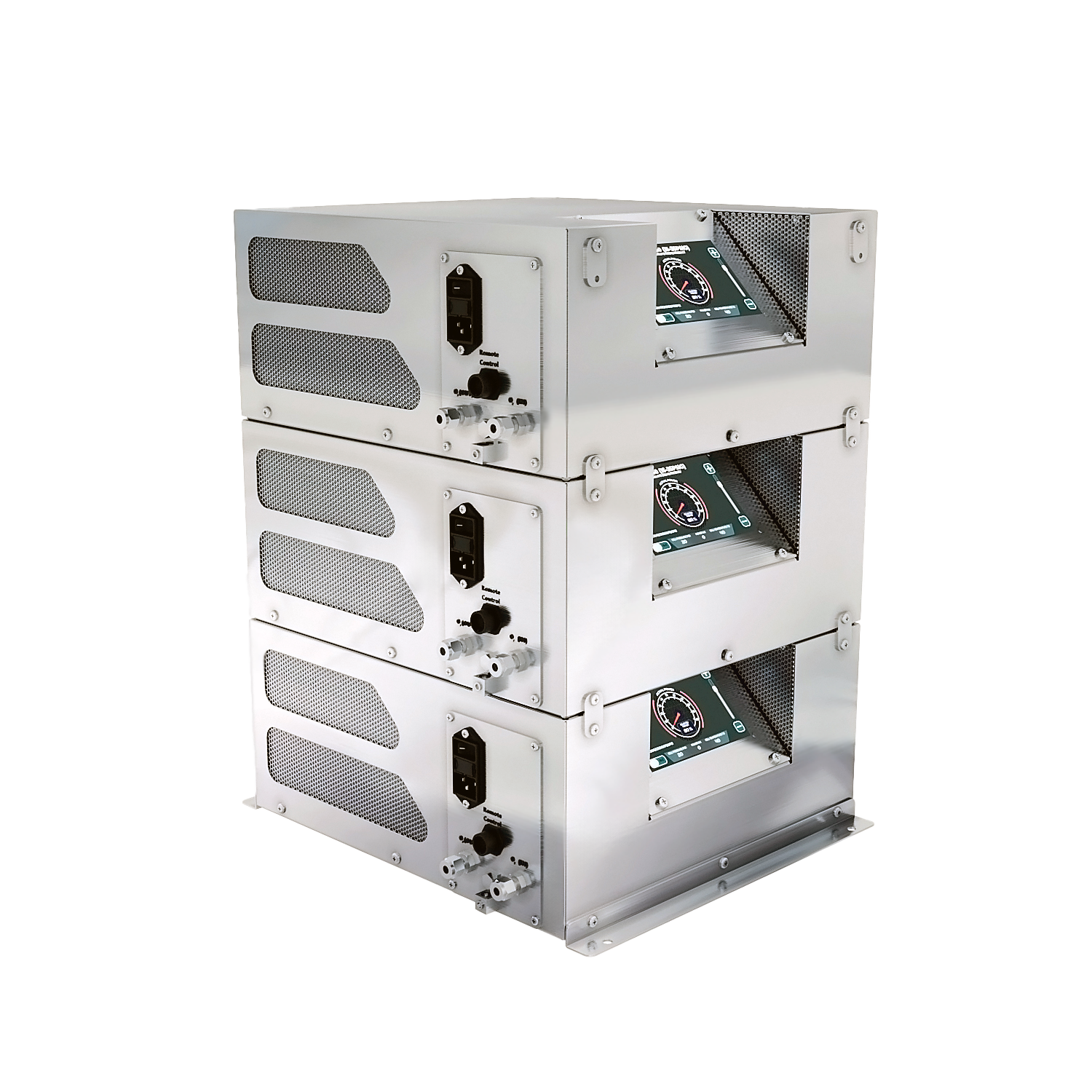

Scalable Flexibility
Absolute Ozone® generators are designed for ultimate adaptability and growth. Our stacking component allows multiple units to be easily configured to achieve the desired ozone concentration, with the capability to scale up to 5 kg/h or more as your needs evolve. Additionally, the reversible universal mounting flange offers the flexibility to install the generator in horizontal or vertical orientations, ensuring optimal accessibility and convenience in any industrial environment.
Conceptual System Diagram
Visit our applications page for other applications installation diagrams
Discover the best solution for your application
At Absolute Ozone®, we are focusing our efforts on the applications and markets in which we can make significant impacts.
• Wastewater Treatment
• Drinking Water Treatment
• Water Parks, Swimming Pools, Spas
• Air & Soil Remediation
• Aquaculture, Zoos & Hatcheries
• Food Processing & Storage
• Laboratory
• Semiconductor
• Laundry Applications
• Agriculture
• Cosmetics
• Livestock and Poultry
• Medical
• Ozone Therapy
…and many more.
Suggested Oxygen Concentrator
For best results with Absolute Ozone generators, we recommend using AirSep ONYX ULTRA Oxygen concentrators.
AirSep offers completely self-contained oxygen generators (equipped with air compressors), these generators require no special installation. Simply connect the oxygen outlet to your oxygen distribution system and the power cord to a grounded electrical outlet. Turn the unit on and set your oxygen delivery pressure.

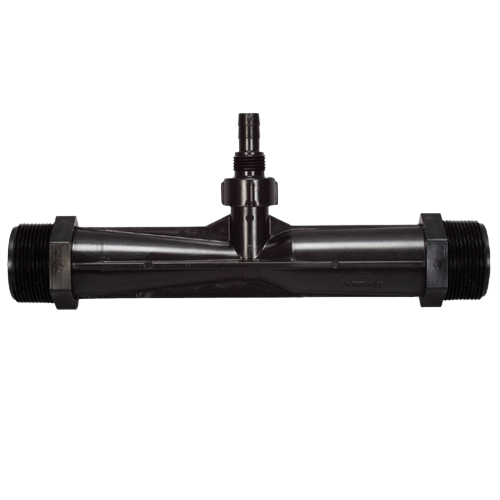

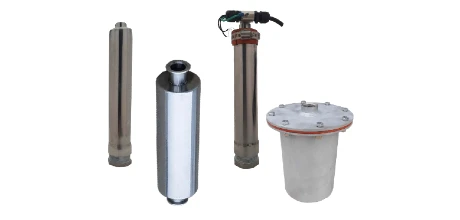

Additional Accessories
