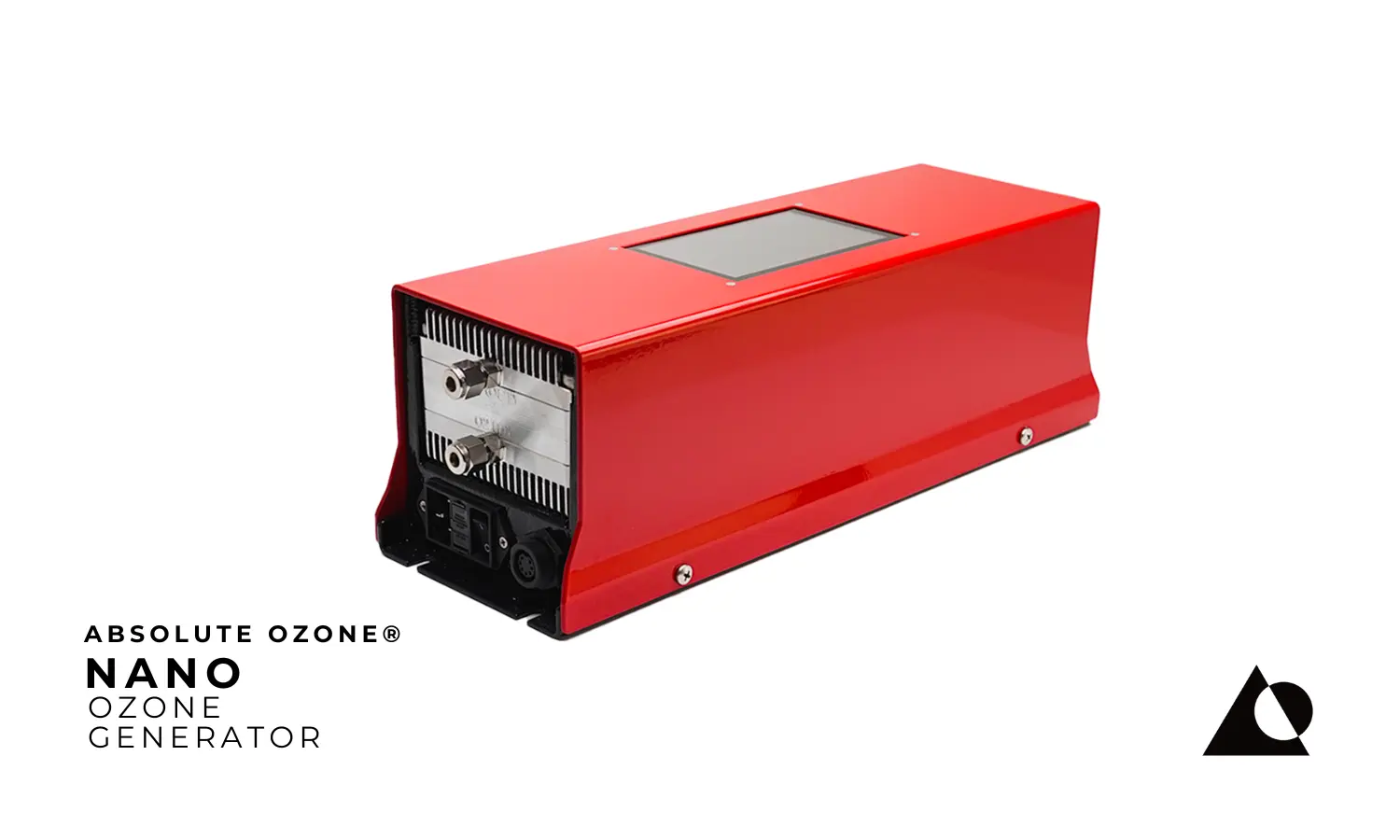

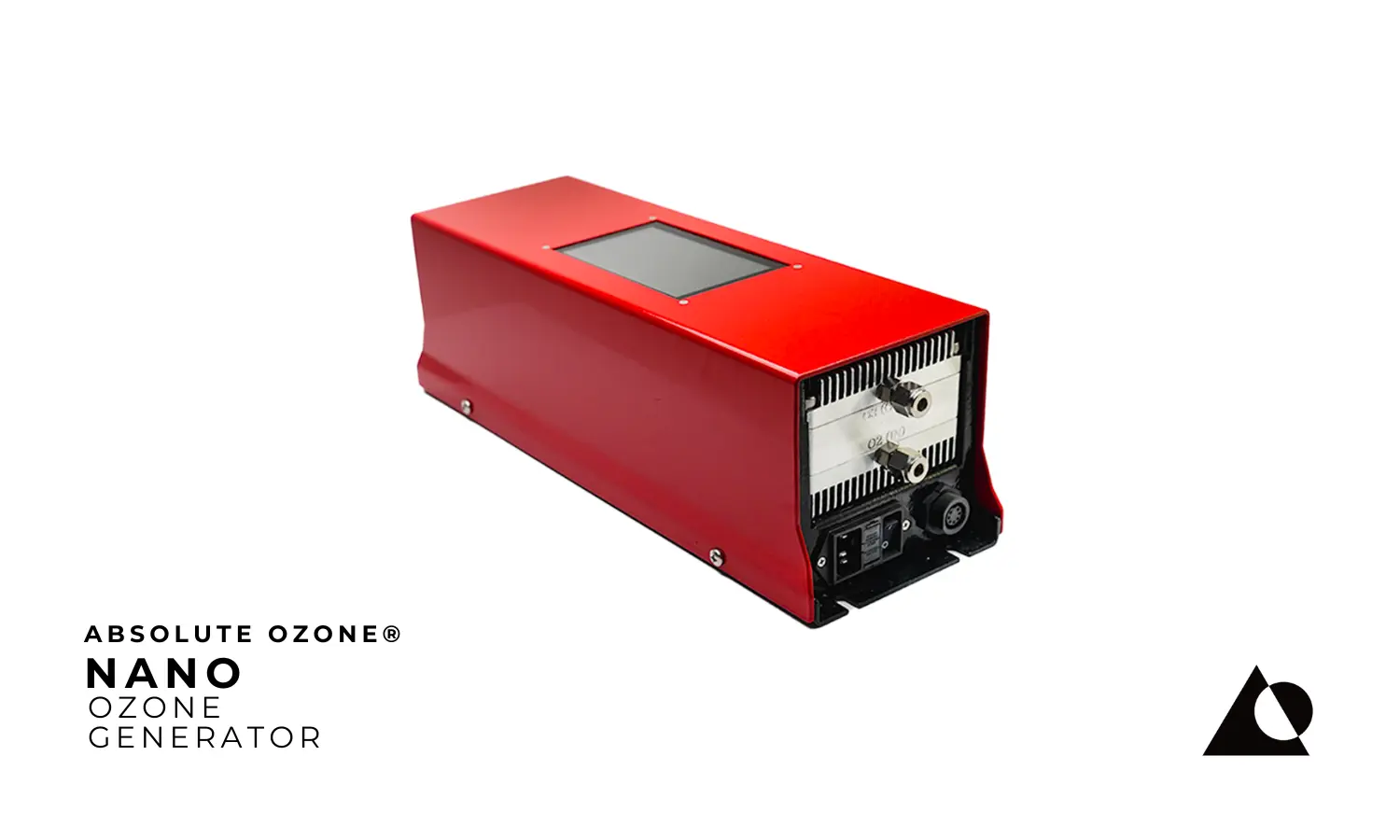

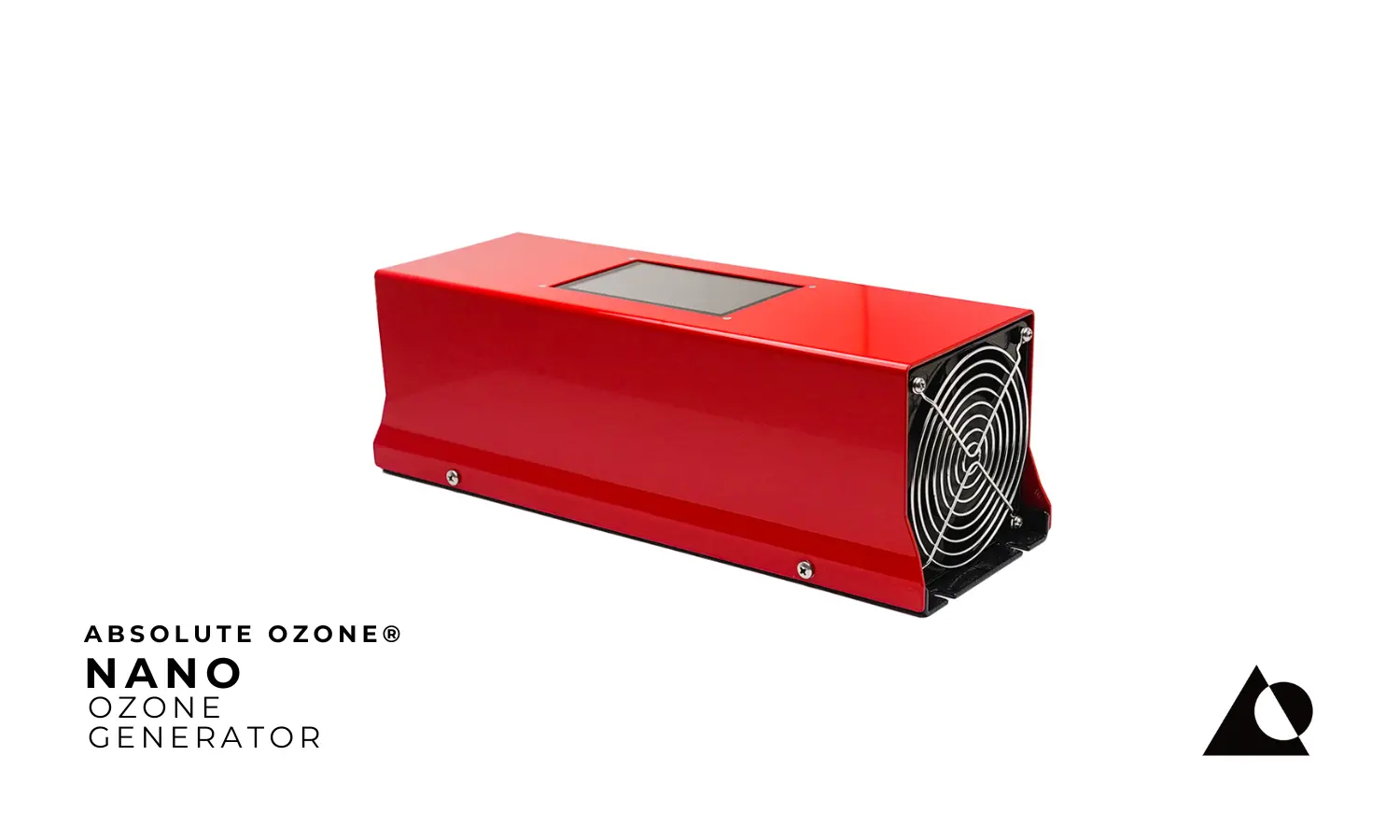

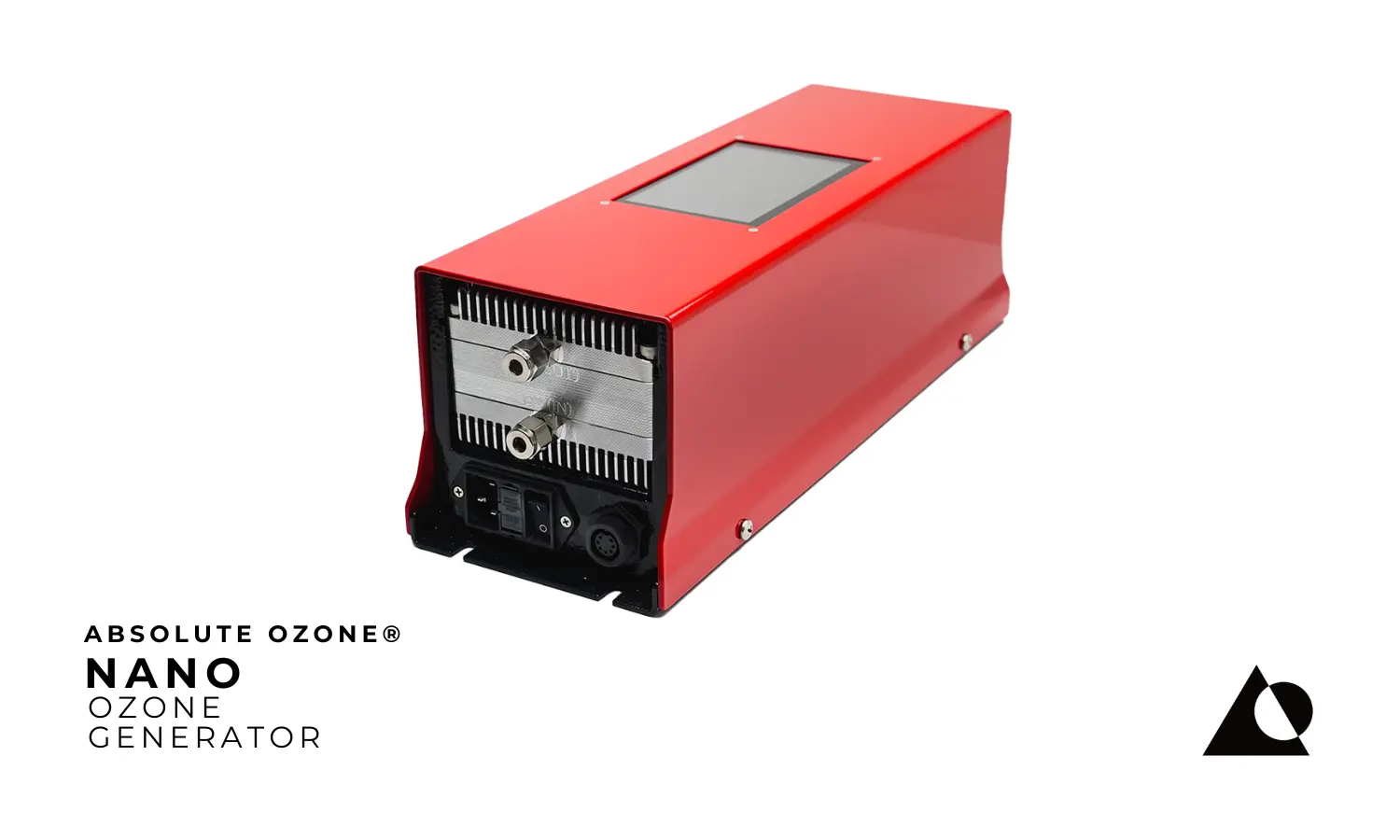

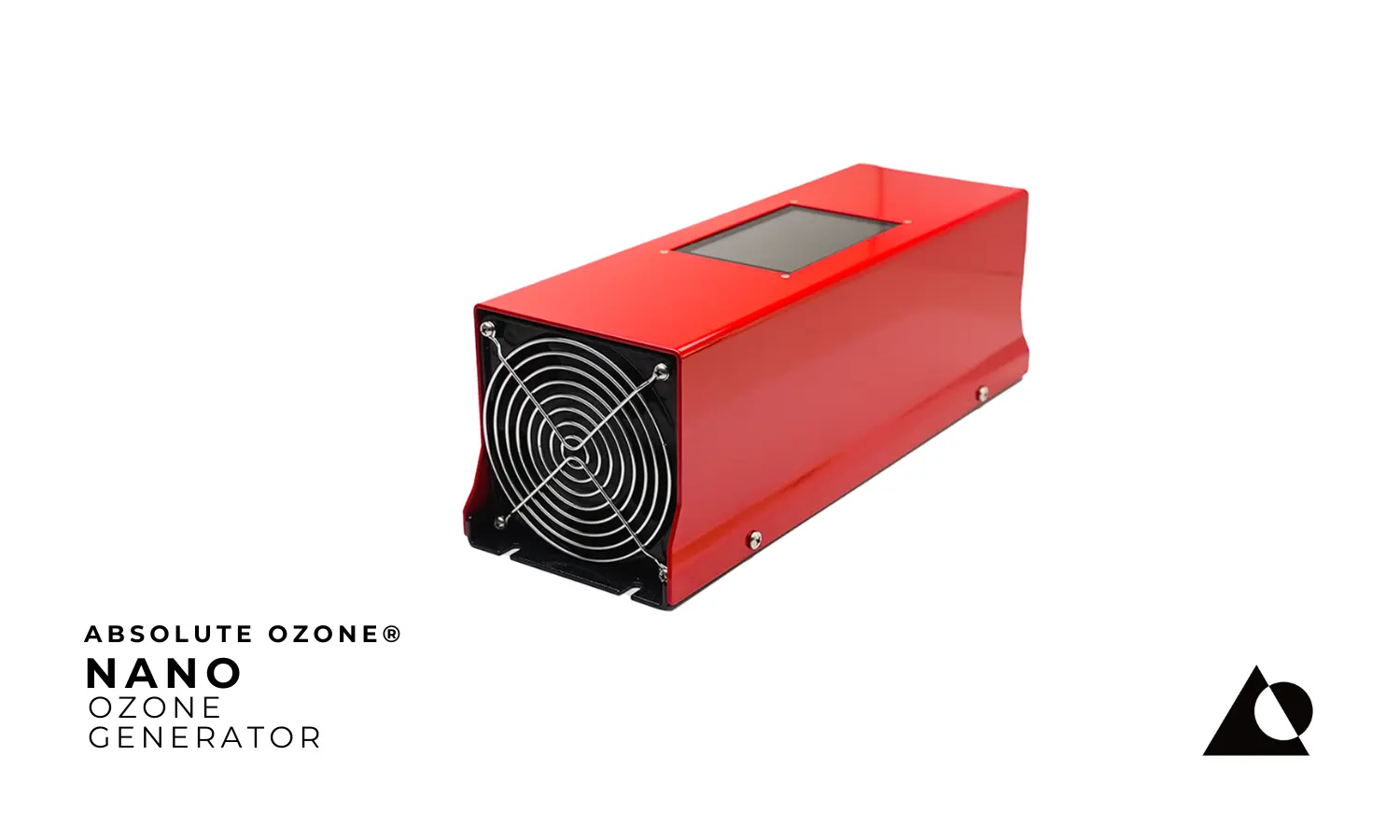

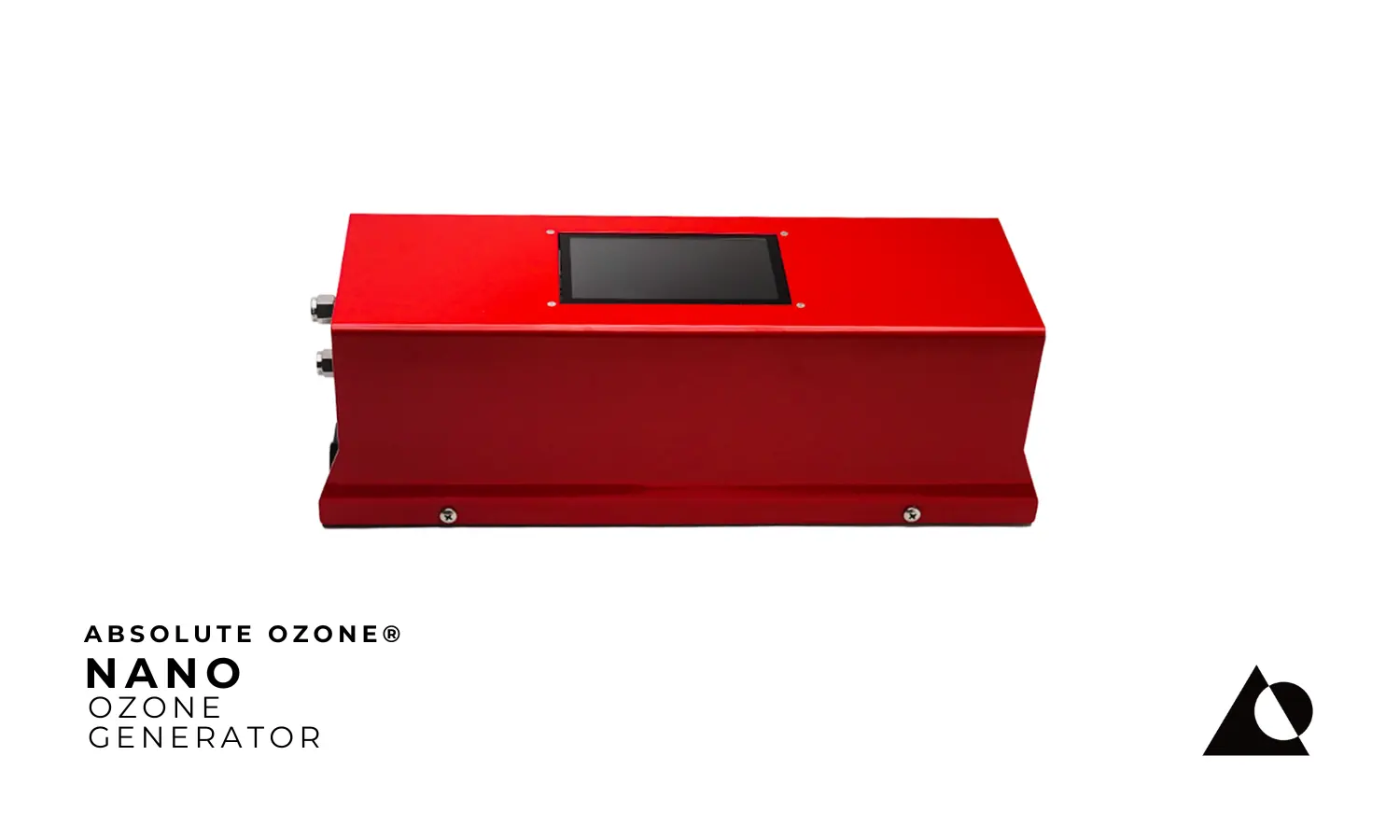

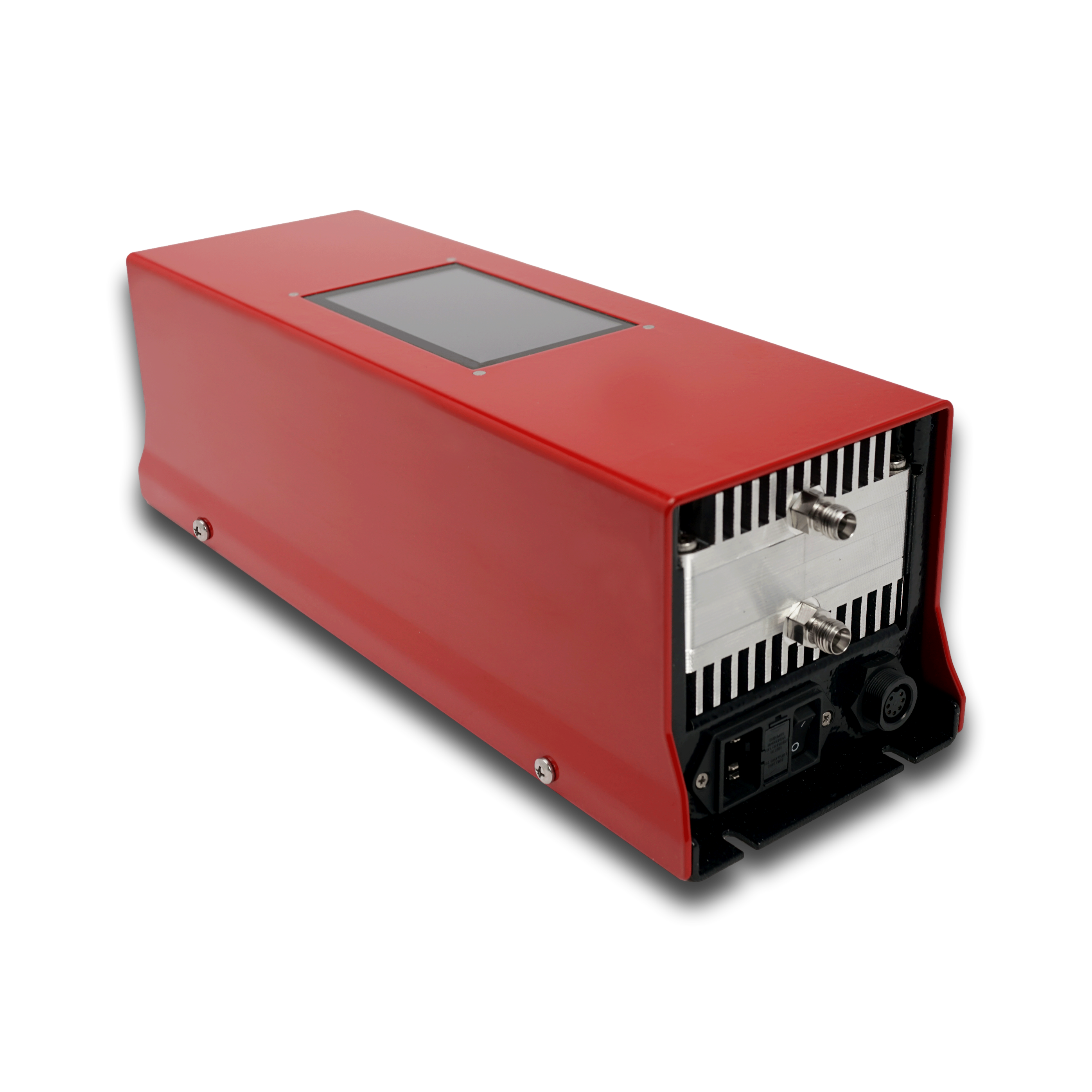

NANO 15
AIR COOLED OZONE GENERATOR
Many Ozone Generators are producing Ozone at a 3% concentration. Besides, hardly achieving 30% of total ozone dissolved and wasting incredibly large amounts of Oxygen.
There is a much better way to dissolve Ozone in water. The NANO can dissolve up to 70% of total Ozone produced while using incredibly low amounts of Oxygen (4 SLPM)
That’s more than Double the Ozone dissolved, Imagine replacing two expensive inefficient clunky Ozone Generators with one Sleek, Compact NANO Ozone Generator.
Now taking orders, Get yours today!
Technical Specifications
Product Characteristics
Ozone Production: up to 15 g/h
Standard Working Pressure: 20 PSIG*
Concentration (% by weight O3): 5 -10%
Gas flow rate: 0.1 – 4 SLPM
Control Power Requirements
120 V ~ Ā±10%, 50/60 Hz, Single Phase, 2.5 A
230 V ~ Ā±10%, 50/60 Hz, Single Phase, 1.25 A
Maximum Power Consumption: 200 W
Physical Connections
Oxygen Inlet: 0.25-inch Swagelok
Ozone Gas Piping Outlet: 0.25-inch SS Swagelok
Materials and Construction
Enclosure: Brushed Stainless Steel/Aluminum
The high Precision Machined Ozone Generator Cell is tested at up to 120 PSIG for leaks.
O3/O2 Gas Tubing: PTFE/304 Stainless Steel/Brass

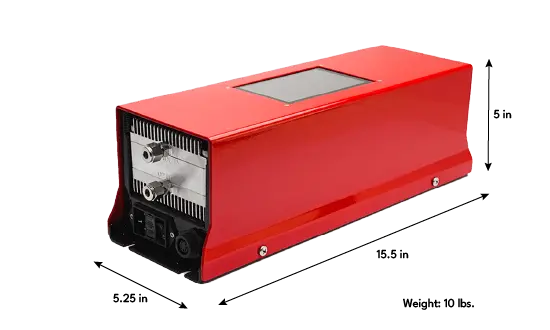

Dimensions and Weight
Enclosure Dimensions: 5 inch height x 5 1/4 inch width x 15.5 inch depth
Generator Weight: 4.5 kg (10 lbs)
CSA – available as an option
Reliability, Performance, and Quality Backed By 5 Years Warranty!
Performance
EXPERIENCE UNBEATABLE AND GUARANTEED PERFORMANCE
Absolute OzoneĀ® unbeatable NANO ozone generator dissolves more ozone than any other, delivering superior disinfection rates.
Absolute OzoneĀ® generators are the ultimate breakthrough in ozone technology. Their microfluidic platform design ensures precise and reliable delivery ozone for a diverse range of applications.
The performance is unequaled in the industry, with the capability of reliably producing high concentration ozone up to 10% by weight guaranteed.

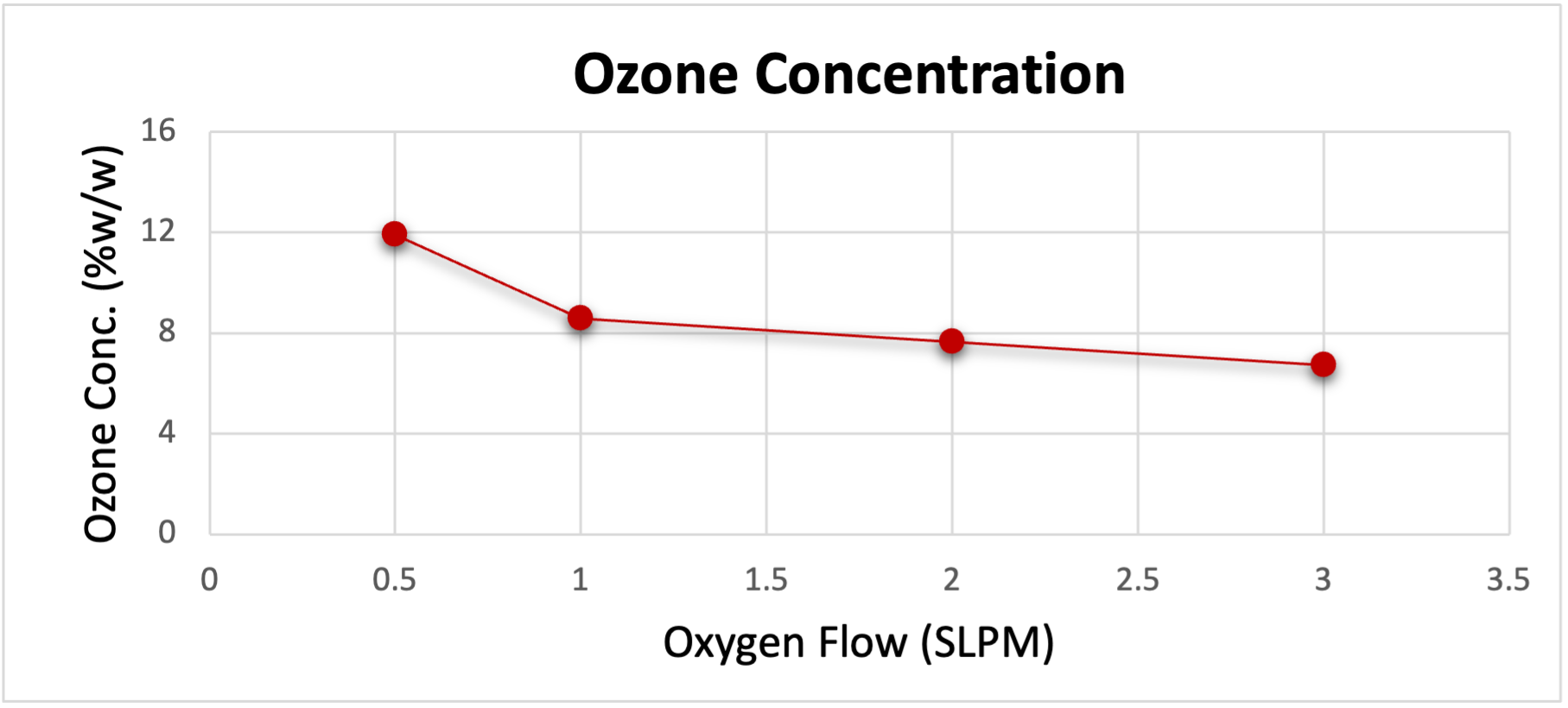

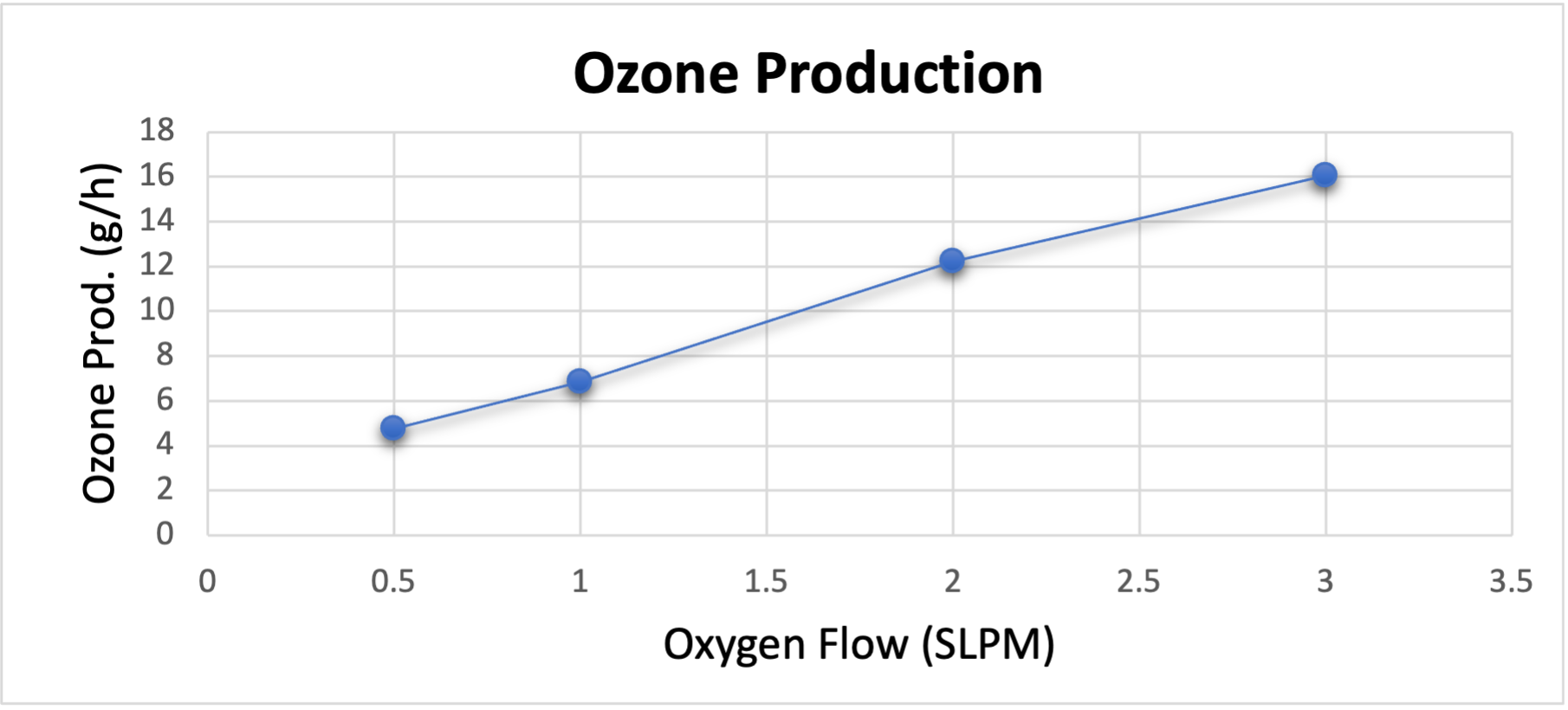

| Oxygen Flow (slpm) | Ozone Conc. (%w/w) | Ozone Prod. (g/h) |
|---|---|---|
| 0.5 | 11.9 | 11.9 |
| 1 | 8.5 | 6.8 |
| 2 | 7.7 | 12.3 |
| 3 | 6.7 | 16.1 |
*Typical NANO 15 performance. The test was performed at 20ĖC, and the Generator was ON for 30 minutes.
Key Features
iOzoneā¢
Designed to protect against installation or usage issues like incorrect gas pressure, high ambient temperatures, flooded ozone cells, wiring/voltage problems and more.
LCD Screen
The LCD screen will allow touch to switch the generator on and off and to adjust the desired power.
Remote Control
The generator comes with 4-20mA/0-10VDC Remote
Control Inputs allow for precise device control via
external signals.

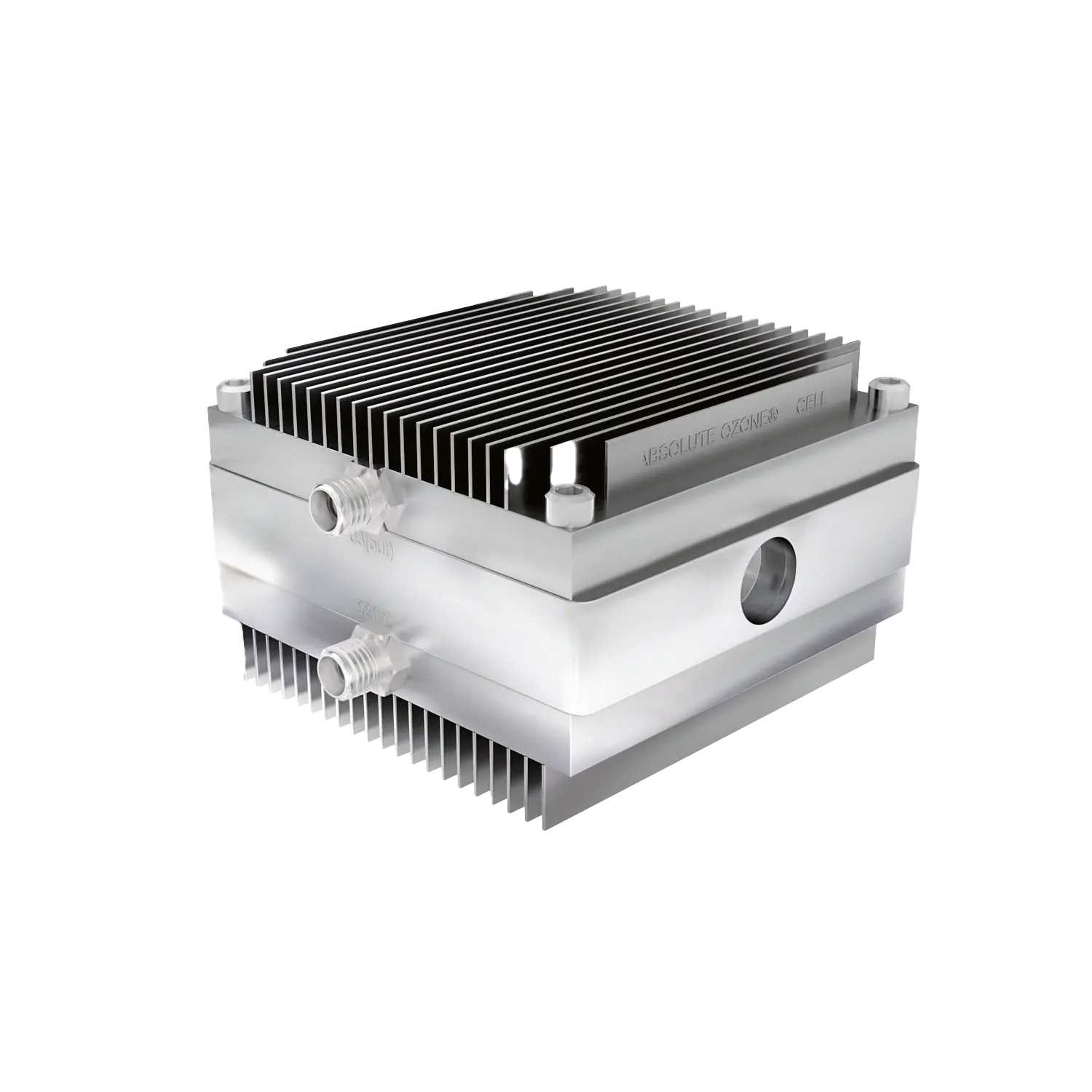

Advanced Microfluidic Design for Unmatched Performance
At the heart of Absolute OzoneĀ® generators is our cutting-edge ozone cell, designed with microfluidic technology for the highest concentration output. This innovation sets a new standard for efficiency, reliability, and longevity, operating flawlessly for decades without maintenance or parts replacement, solidifying Absolute OzoneĀ® as the pinnacle of ozone generation technology.
Intelligent Protection with iOzone Diagnostic System
Absolute OzoneĀ® takes reliability to the next level with iOzone, our integrated diagnostic system. iOzone continuously monitors key operational parameters, providing real-time insights to proactively prevent damage to the generator. By identifying potential issues before they escalate, iOzone safeguards your investment, ensuring uninterrupted performance and extending the life of your ozone generation system.

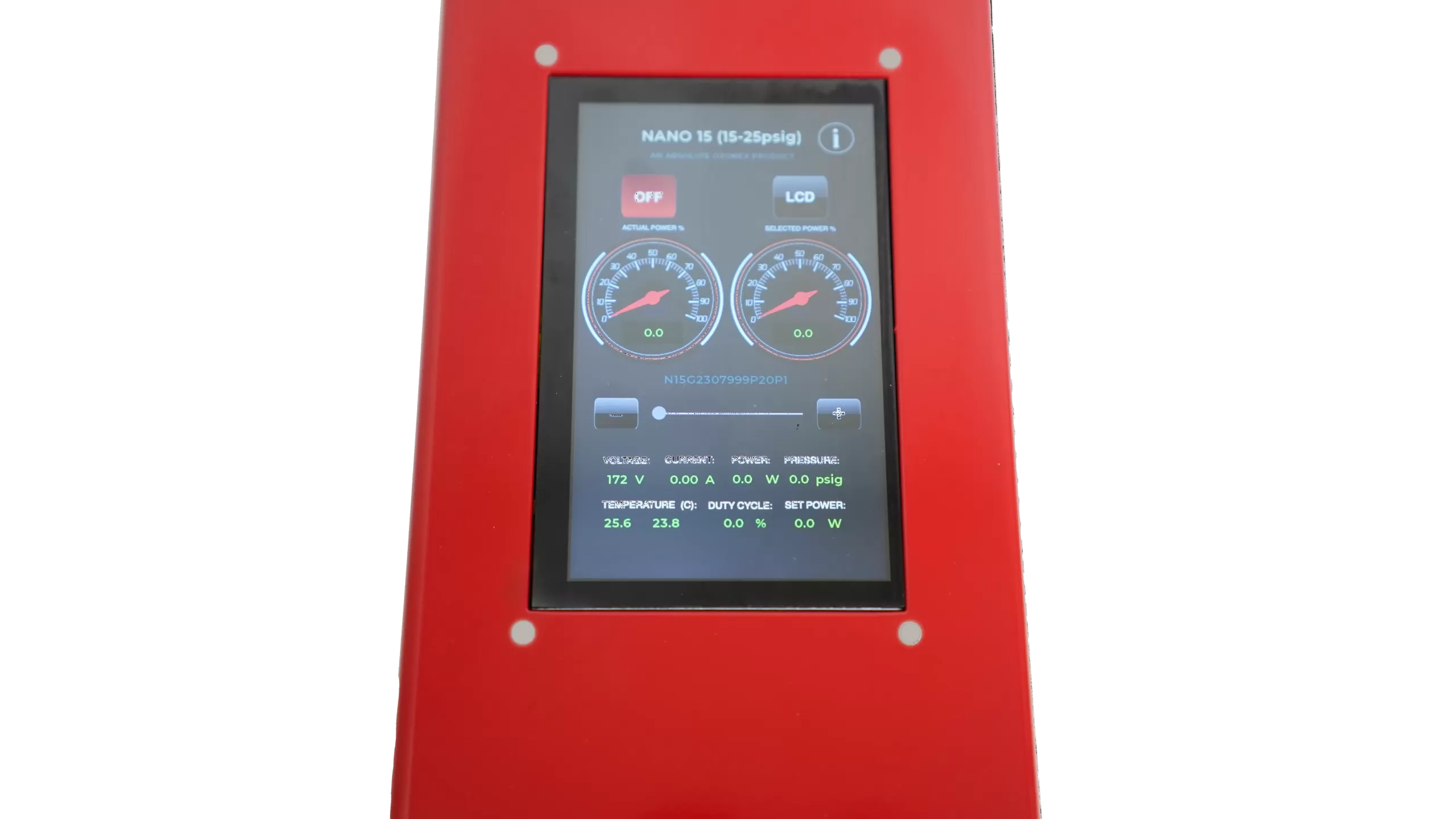

LCD touchscreen interface
Our advanced LCD touchscreen interface transforms the way you interact with Absolute OzoneĀ® generators. This intuitive control panel not only offers effortless system management but also provides critical real-time data at your fingertips. With instant access to vital information, you can ensure optimal performance.
Revolutionizing Small-Scale Ozone Generation:
The Absolute Ozone | Ozone Generators Nano 15 model is a versatile and powerful ozone generator that is perfect for small-scale projects such as laboratory or university research, as well as water and air treatment applications. This compact and lightweight device is designed for easy use and is ideal for pilot testing in industrial and research settings where space is limited.
Conceptual System Diagram
Visit our applications page forĀ other applications installation diagrams
DISCOVER THE BEST SOLUTION FOR YOUR APPLICATION
At Absolute OzoneĀ®, we are focusing our efforts on the applications and markets in which we can make significant impacts.
ā¢ Wastewater Treatment
ā¢ Drinking Water Treatment
ā¢ Water Parks, Swimming Pools, Spas
ā¢ Air & Soil Remediation
ā¢ Aquaculture, Zoos & Hatcheries
ā¢ Food Processing & Storage
ā¢ Laboratory
ā¢ Semiconductor
ā¢ Laundry Applications
ā¢ Agriculture
ā¢ Cosmetics
ā¢ Livestock and Poultry
ā¢ Medical
ā¢ Ozone Therapy
…and many more.

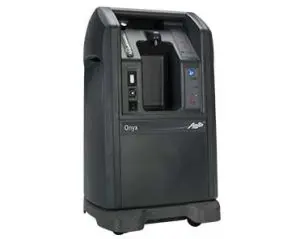

Suggested Oxygen Concentrator
For best results with Absolute Ozone generators, we recommend using AirSep ONYX ULTRA Oxygen concentrators.
AirSep offers completely self-contained oxygen generators (equipped with air compressors), these generators require no special installation. Simply connect the oxygen outlet to your oxygen distribution system and the power cord to a grounded electrical outlet. Turn the unit on and set your oxygen delivery pressure
